Excelsior Power

SOLAR INVERTER BATTERY PACKAGE PRO-PLUS

SOLAR INVERTER BATTERY PACKAGE PRO-PLUS

$4,499.00 AUD
$10,700.00 AUD $4,499.00 AUD
Sale Sold out





The Excelsior Power range of complete off-Grid solar Power Stand alone systems are a complete package for your remote power requirements.

We have applied our years of experience of designing systems for clients to create these off the shelf packages for ease of selection and time

saving for the end user.

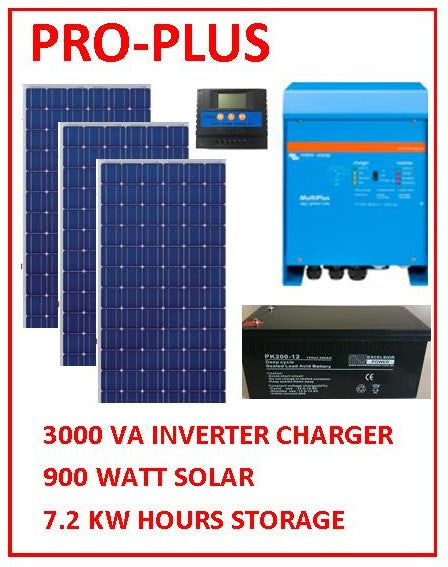

System includes:

3 by 444 watt Solar Panel

Inverter Charger Victron 3000, 3000 VA, 48 volt Pure Sine Wave

4 by 200 Amp/Hour, 12 volt Battery

35 Amp Victron Solar Regulator

Cables

Phone for best freight price

Prices do not include freight, please call for freight quote!

5 YEAR WARRANTY

INVERTER CHARGER SPECIFICATIONS





Output power continuous:

3000VA

Dimensions (mm):

362h x 258w x 218d

Output watts continuous :

2500W

Mass:

18Kg

Output power surge:

6000W

Battery high protection:

Yes

Input voltage:

38 - 66 V

Battery low protection:

Yes

Standby current:

5 - 15 W

Overload protection:

Yes

Output frequency:

50Hz +/-0.1%

Over temp protection:

Yes

Output voltage:

230 Vac Sine

Thermal fan:

Yes

Output regulation:

Sine, <5%THD

Output Power LCD:

No

Efficiency:

94%

Fault LED:

Yes

Selectable demand start:

Yes

Audible alarm:

Yes

Output isolation:

Yes

Remote control:

Optional

Battery Charger 5 stage:

Yes

Solar Charger:

No

Battery Charger Current:

35 Amps

Generator Support:

Yes

Aux Battery charger:

0 Amps

Solar Charger Current:

N/A

Automatic load transfer:

Yes

Automatic Generator Start:

Yes

 Number of AC inputs:

 1

 Number of AC outputs:

 1




BATTERY SPECIFICATIONS



Battery Voltage:

12

Dimensions (mm):

220h x 530w x 240d

Capacity:

200 A/H

Mass:

65Kg

 No of Batteries

  4  System Voltage:  48 Volts





SOLAR PANEL SPECIFICATIONS







Panel Voltage:

24

Dimensions (mm):

35h x 992w x 1956d

Wattage:

415 W

O C Voltage:

36.3 V

 Current at Max Power

  8.4 A  Mass  27 Kg





SOLAR REGULATOR SPECIFICATIONS







Battery Voltage:

48

Dimensions (mm):

70h x 135w x 35d

Amps:

35

LCD Display:

No
