DC2412/10

OUTPUT CURRENT : 15 Amps intermittant, 10 Amps continuous
OUTPUT VOLTAGE : 12-13.8VDC
INPUT VOLTAGE : 20 to 30 VDC
EFFICIENCY : 90%
SIZE (HWD) : 71mm X 73mm X 45mm
WEIGHT: 260g
FEATURES : Output short circuit protection, Input reverse polarity protection, Thermal Protection, Thermal Cooling fan.

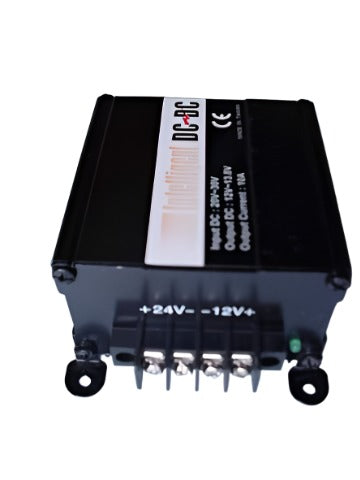

The Excelsior range of 24V DC to 13.8V DC converters feature switch mode technology to achieve very high levels of efficiency, up to 90%

As the output voltage is 13.8V DC, it will actually charge a 12 volt battery.

The unit also features thermal fan auxiliary cooling, as well as thermal protection, so it is very light and small.

It also incorporates overload and reverse polarity protection and is rated at 10 Amps

(RRP $100.00 ex)
